Automated Watering for Soil Grows

by suttre

This is tools and parts for a ~30 gallon automated watering system for a soil grow. I am going out of town for a week and don't have any plant sitters available. If you have a water source in your grow, i would do this a little differently (eliminate the pump and set the filter/pressure reducer straight off the pressurized water line–assuming no pH adjustment is necessary)

The concept – to automate watering over a 7+ day period using a 7 day timer, applying approx 2 gallons of pH adjusted water per hour. With a two hour run time, I should be able to get two cycles in while I'm out of town.

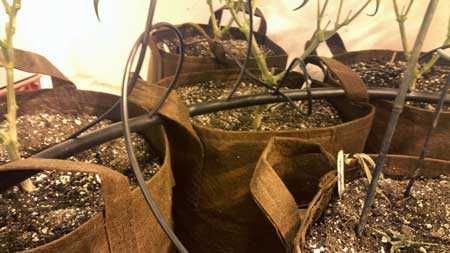

Auto-mated soil watering system for growing cannabis

The setup

  • From the tank – pump hooked to 1/2" supply line and then to the 1/2" barb on the drip filter housing.
  • Attached to the filter housing on the downstream side is a pressure regulator set to 10 psi (i think these dripper stakes will take up to 45, farmtek has a sheet).
  • After the pressure regulator is a 1/2" barb fitting and another run of 1/2" tubing next to the plants.
  • Using the 3mm punch, spaghetti lines are fed directly into the supply line and a dripper stake is attached at the other end.
  • Cut your spaghetti lines at an angle on the side that goes into the supply.
  • Once all of your plants have a line and stake, flush the system.
  • Then attach the end plug and clamp it.
  • Hose clamps are used on pump connection, both ends of the filter/pressure regulator assembly, and at the end of the line.

You can get the fancy spagetti line manifolds that farmtek sells, but they are unnecessary. Using different drippers would be appropriate if you want a different application rate (starts at .5 g/hour and goes to 4 g/hour).

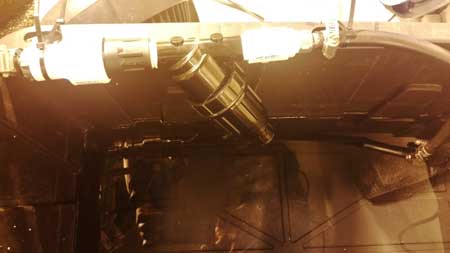

Automated watering system for growing marijuana in soil

PARTS LIST

Sourced Locally or On Hand (lowes)

  • 1/8" Polyethylene Drip Tubing (spaghetti line .125 ID)
  • 1/2" Polyethylene Tubing (supply line – THIN WALL)
  • 1 1/2" barb Plug
  • 1 1/2" barb -> 3/4 MPT fitting
  • 1 1/2" barb -> 1/2" MPT
  • 1 1/2" MPT -> 3/4" slip pvc bushing
  • 1 3/4" slip -> 3/4" FPT pvc fitting
  • 4 1/2" capable hose clamps
  • 30 gallon hard sided tote

From Amazon.com

From Farmtek.com

110407
Angled Arrow Dripper Stake – 6-3/8"L
 30EA$0.25$7.50
110743
3MM Punch
 1EA$19.95$19.95
WF1020
3/4" Y-Filter With Flush Valve With Poly Screen
 1EA$18.95$18.95
109687
Preset Pressure Regulator 3/4" FPT Inlet x 3/4" FPT Outlet – 10 PSI
 1EA$13.35$13.35

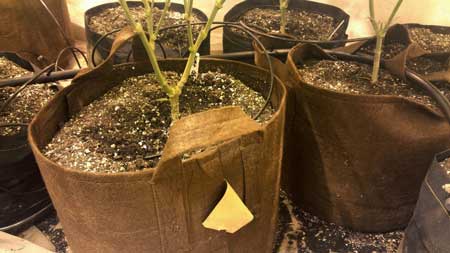

HOw to build an automatic watering system for growing weed
